Place of Origin:
CHINA
Brand Name:
daosm
Certification:
ISO9001 CE ROHS FCC IP67

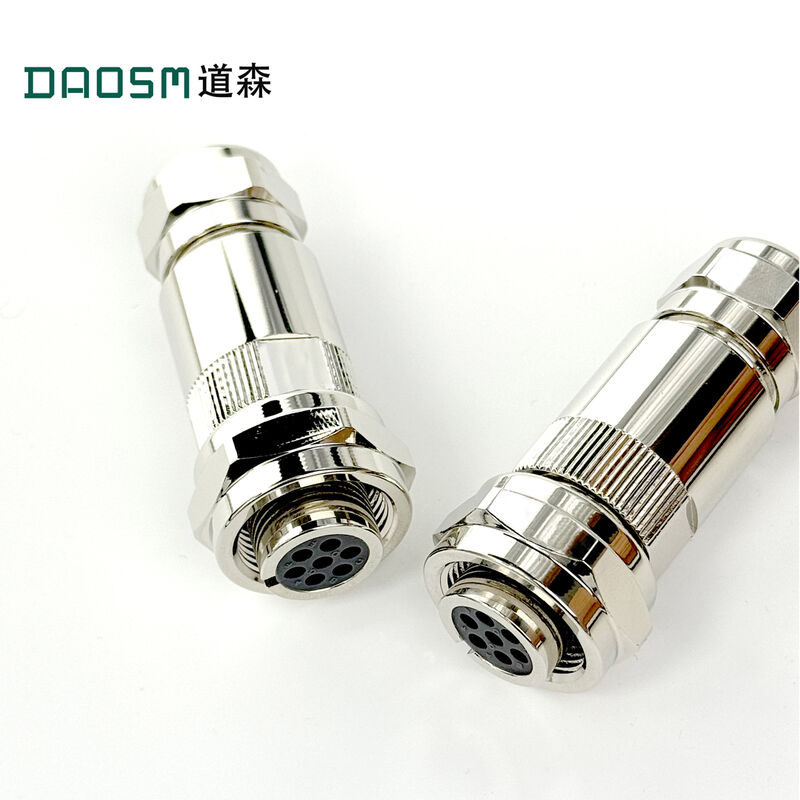

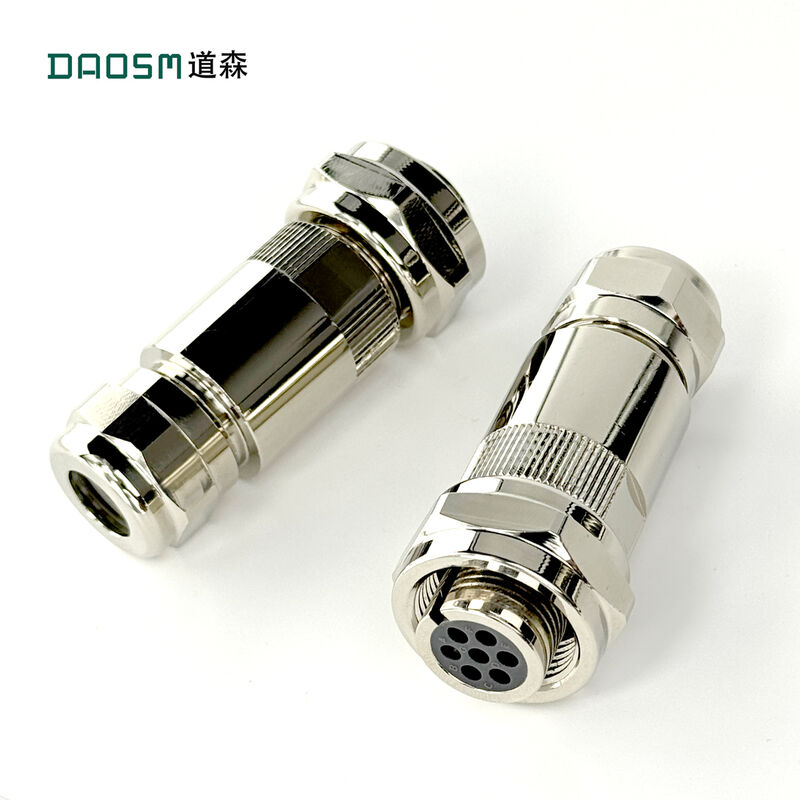

The 7 Pin Connectors are essential components for various electrical applications, offering a reliable and efficient solution for connecting multiple wires. Available in a selection of sizes, colors, contact plating options, and connector types, these connectors cater to diverse needs in the industry.
These versatile 7-wire connectors come in both Standard and Mini sizes to accommodate different requirements. The Standard size is ideal for applications where a larger connector is preferred, offering ease of handling and connection. On the other hand, the Mini size is perfect for situations where space is limited, providing a compact yet efficient solution.
When it comes to color options, the 7 Pin Connectors are available in Black and Silver variants. The sleek Black connectors offer a professional and discreet look, blending seamlessly with various devices and equipment. In contrast, the Silver connectors provide a modern and stylish appearance, adding a touch of sophistication to your connections.
For enhanced performance and longevity, these 7-terminal connectors feature two contact plating options: Gold and Tin. The Gold plating ensures superior conductivity and corrosion resistance, making it an excellent choice for applications where reliable connections are crucial. Meanwhile, the Tin plating offers cost-effective protection against oxidation and wear, providing a reliable connection without compromising quality.
Choose between Male and Female connector types based on your specific requirements. The Male connectors feature pins or terminals that plug into corresponding Female connectors, creating a secure and stable connection. On the other hand, the Female connectors have receptacles or slots that accept the pins from Male connectors, facilitating easy and efficient connections.
With a durability rating of 5000 cycles, these 7-head connectors are built to withstand frequent use and repetitive connections. Whether you need to connect and disconnect the wires multiple times or require a reliable solution for long-term installations, these connectors deliver consistent performance and durability.
Overall, the 7 Pin Connectors offer a versatile, reliable, and durable solution for various electrical applications. With options for size, color, contact plating, and connector type, these connectors can be tailored to meet your specific needs. Whether you are working on electronics, automotive projects, industrial machinery, or other applications, these connectors provide a convenient and efficient way to establish secure connections.
| Contact Resistance | 20mΩ |
| Number Of Pins | 7 |
| Termination Style | Solder/Crimp |
| Contact Plating | Gold/Tin |
| Insulation Resistance | 1000MΩ |
| Material | Metal/Plastic |
| Durability | 5000 Cycles |
| Current Rating | 5A/10A |
| Mounting Type | Through Hole/Surface Mount |
| Size | Standard/Mini |
When it comes to the application occasions and scenarios for 7-pin connectors, these versatile components find their utility across a wide range of industries and settings due to their unique attributes and configurations.
One common application scenario for 7-pin connectors is in automotive electronics. These connectors are often used in vehicles for various purposes such as connecting sensors, actuators, and control modules. The rugged design of the connectors, available in both standard and mini sizes, makes them suitable for the demanding environment of automotive applications.
Another key area of use for 7-pin connectors is in industrial automation. With a current rating of 5A or 10A, these connectors are capable of handling the power requirements of industrial machinery and equipment. Whether for through-hole mounting or surface mount applications, the 7-pin connectors ensure reliable connections in industrial settings.
For electronic devices and consumer electronics, 7-pin connectors are ideal for providing power and data connectivity. The choice of metal or plastic material for these connectors allows for customization based on the specific requirements of the application. From connecting circuit boards to peripherals to interfacing with external devices, 7-pin sockets offer a versatile solution.
In the field of telecommunications, 7-terminal connectors play a crucial role in ensuring seamless communication networks. Whether used in networking equipment, fiber optic connections, or data centers, the reliability and durability of these connectors make them essential components for maintaining uninterrupted connectivity.
Overall, the diverse product attributes of 7-pin connectors make them suitable for a wide range of application occasions and scenarios across industries such as automotive, industrial automation, electronics, and telecommunications. With their varying sizes, current ratings, mounting types, and material options, these connectors provide flexible and dependable connectivity solutions for different needs.
Customize your 7-pin connectors with our Product Customization Services to meet your specific requirements:
Contact Resistance: 20mΩ
Size: Standard/Mini
Insulation Resistance: 1000MΩ
Operating Temperature: -40°C To 85°C
Termination Style: Solder/Crimp
This 7 Pin Connectors product comes in a sturdy and durable packaging to ensure safe delivery to your doorstep. The connectors are carefully packed to prevent any damage during transit.
For shipping, we use reliable carriers to guarantee timely delivery. Your order will be securely packaged and shipped with tracking information provided so you can monitor its journey until it reaches you.
