Place of Origin:
CHINA
Brand Name:
daosm
Certification:
ISO9001 CE ROHS FCC IP67

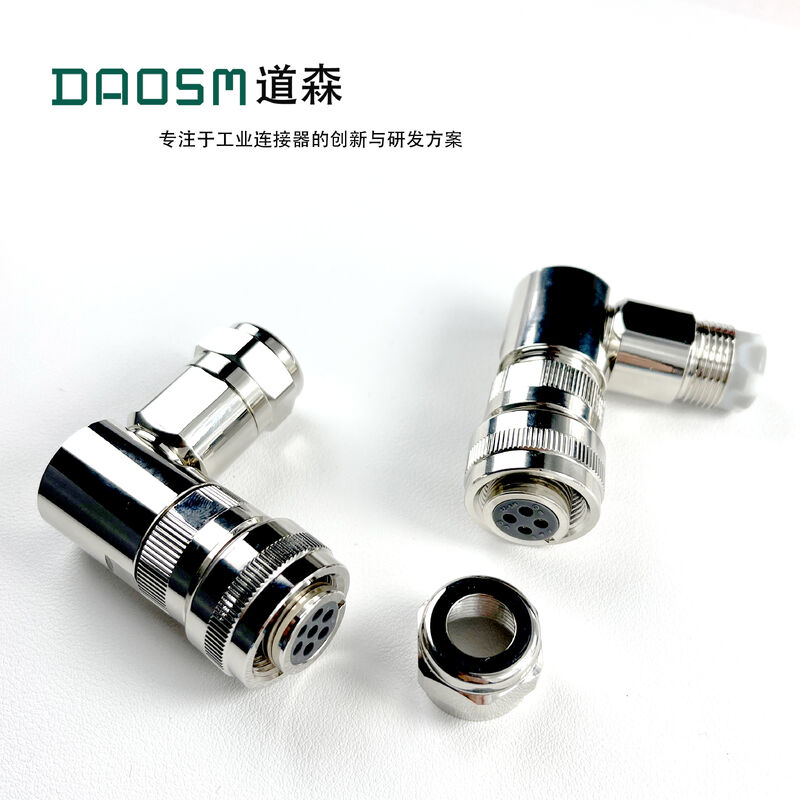

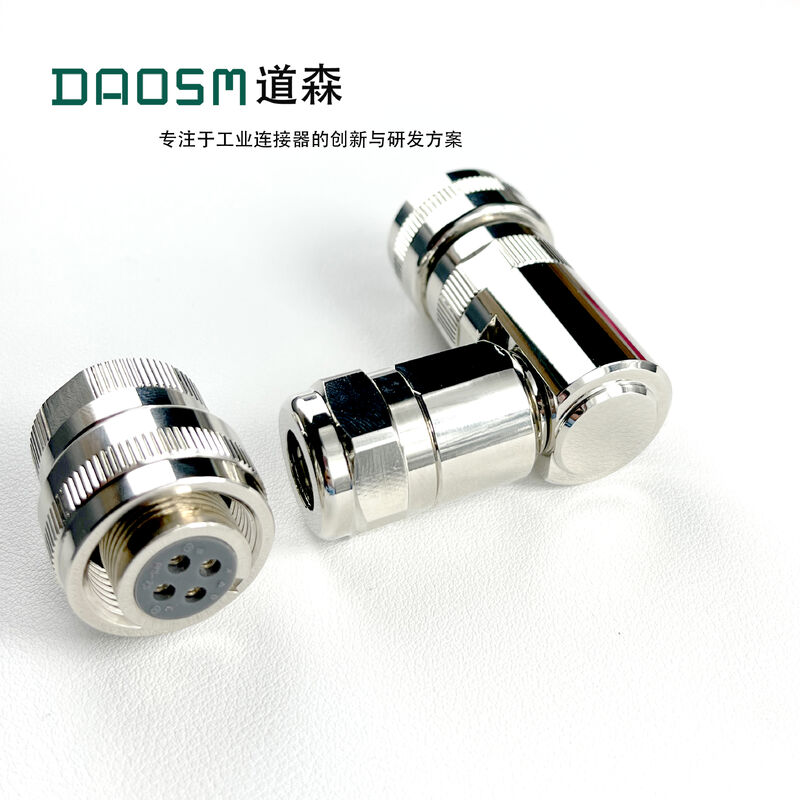

Welcome to our product summary for the versatile 7-pin connectors, essential components for various electrical and electronic applications. These 7-contact connectors, also known as 7-head connectors or 7-pin adapters, offer reliable connectivity with a current rating of 5A/10A, making them suitable for a wide range of devices and systems.
Designed with durability in mind, these 7-pin connectors are built to withstand up to 5000 cycles of use, ensuring long-lasting performance and dependable connections. Whether you need to transmit power, data, or signals, these connectors provide a secure and stable link between devices.
Available in a choice of materials, including metal and plastic, these connectors offer flexibility to suit different requirements and environments. The metal connectors provide robustness and stability, ideal for industrial applications where ruggedness is key. On the other hand, the plastic connectors offer lightweight and cost-effective solutions for less demanding scenarios.
With options for both male and female connector types, these 7-pin connectors cater to diverse connection needs. The male connectors feature pins that plug into corresponding female sockets, creating a secure and reliable bond. Meanwhile, the female connectors offer receptacles that accept the pins, allowing for easy and efficient connections.
Whether you are designing a new electronic device, repairing existing equipment, or upgrading a system, these 7-pin connectors offer a versatile and practical solution. Their compact size and efficient design make them suitable for various applications, including automotive, aerospace, telecommunications, and more.
When it comes to connectivity and performance, these 7-pin connectors deliver exceptional results. Their current rating of 5A/10A ensures efficient power transmission, while the 7-pin configuration allows for multiple signals or data streams to be transmitted simultaneously.
In conclusion, our 7-pin connectors are the reliable choice for your connection needs, offering durability, versatility, and performance in a compact and efficient package. Whether you need to establish power links, data connections, or signal transfers, these connectors are the dependable solution for your projects and applications.
| Insulation Resistance | 1000MΩ |
| Contact Plating | Gold/Tin |
| Operating Temperature | -40°C To 85°C |
| Size | Standard/Mini |
| Voltage Rating | 12V/24V |
| Connector Type | Male/Female |
| Termination Style | Solder/Crimp |
| Durability | 5000 Cycles |
| Color | Black/Silver |
| Contact Resistance | 20mΩ |
The 7-pin connectors, also known as 7-wire connectors, are versatile components suitable for various applications due to their unique attributes. With options for both solder and crimp termination styles, these connectors provide flexibility in installation and maintenance processes.
With a voltage rating of 12V or 24V, these connectors are ideal for use in automotive, marine, and industrial settings where low to moderate voltage requirements are common. Whether it's for lighting systems, sensors, or control circuits, the 7-pin connectors can reliably handle the electrical needs of different devices.
Available in through-hole or surface mount configurations, these connectors offer compatibility with different PCB designs and mounting preferences. The through-hole mounting type ensures secure attachment to the circuit board, while the surface mount option provides a space-saving solution for compact electronic assemblies.
Constructed from durable metal or lightweight plastic materials, these connectors cater to diverse environmental conditions and application requirements. The metal variants offer robustness and enhanced shielding for EMI protection, making them suitable for harsh industrial environments. On the other hand, plastic connectors are cost-effective and suitable for applications where weight and cost savings are priorities.
Featuring insulation resistance of 1000MΩ, these connectors provide reliable electrical insulation to prevent leakage currents and ensure safe operation in various scenarios. This high insulation resistance makes the 7-pin connectors ideal for use in sensitive electronic systems, where maintaining signal integrity and preventing short circuits are critical.
Overall, the 7-pin connectors find application across a wide range of industries, including automotive, aerospace, telecommunications, and consumer electronics. Their adaptability, voltage ratings, termination styles, mounting types, material options, and insulation resistance make them a go-to choice for connecting multiple wires efficiently and securely in diverse electrical systems.
Enhance your 7-pin connectors with our Product Customization Services tailored to meet your specific needs:
Current Rating: 5A/10A
Number Of Pins: 7
Durability: 5000 Cycles
Color: Black/Silver
Termination Style: Solder/Crimp
Product: 7 Pin Connectors
Description: High-quality set of 7 pin connectors for various electrical applications.
Package Includes: 10 x 7 Pin Connectors
Shipping Information:
- Orders will be processed within 1-2 business days
- Standard shipping delivery within 3-5 business days
- Expedited shipping options available upon request
Send your inquiry directly to us
