Place of Origin:
CHINA
Brand Name:
daosm
Certification:
ISO9001 CE ROHS FCC IP67

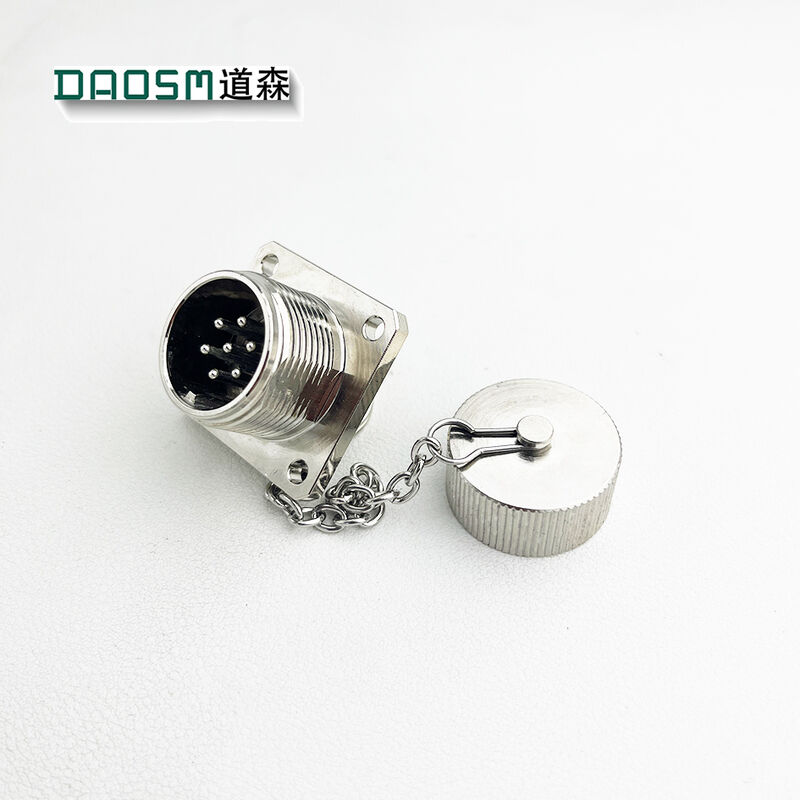

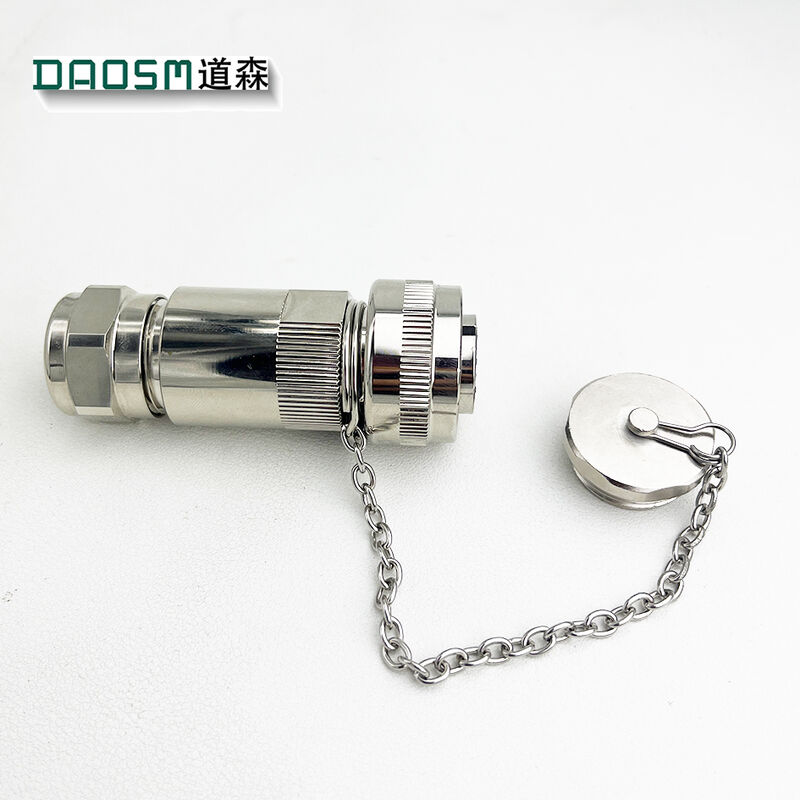

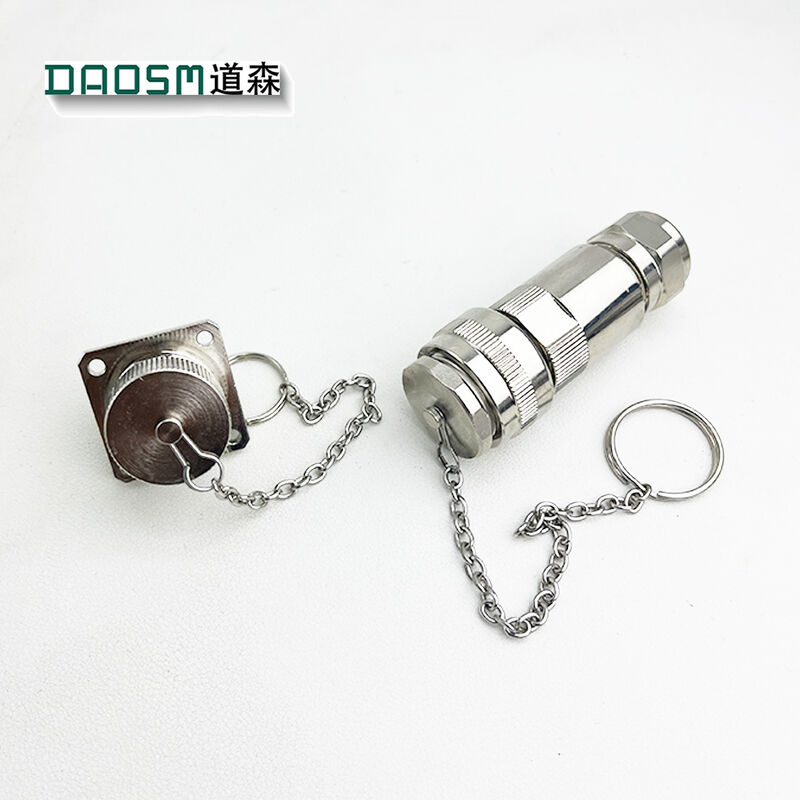

Introducing our top-quality 7-pin connectors, essential components for your electrical connections. These versatile 7-pin adapters are designed to meet your various connectivity needs with their reliable performance and durable construction.
Insulation Resistance: 1000MΩ
Color: Black/Silver
Size: Standard/Mini
Contact Resistance: 20mΩ
Current Rating: 5A/10A
Our 7-pin connectors come in a sleek black or silver color, adding a modern touch to your setup while ensuring easy identification. Whether you prefer the standard size for regular applications or the mini size for compact setups, we have the perfect fit for your requirements.
With an impressive insulation resistance of 1000MΩ, these 7-head connectors provide a high level of protection against electrical leakage, ensuring the safety and reliability of your connections. The low contact resistance of 20mΩ minimizes power loss and heat generation, allowing for efficient energy transfer.
Whether you need to handle 5A or 10A of current, our 7-pin adapters are up to the task, delivering stable performance under varying load conditions. From industrial machinery to automotive applications, these connectors offer a secure and stable connection for your critical systems.
Upgrade your electrical setup with our premium 7-pin connectors, engineered for durability and performance. Trust in the quality and reliability of our products to meet your connectivity needs with precision and efficiency.
| Technical Parameter | Specification |
|---|---|
| Voltage Rating | 12V/24V |
| Durability | 5000 Cycles |
| Operating Temperature | -40°C To 85°C |
| Contact Resistance | 20mΩ |
| Termination Style | Solder/Crimp |
| Material | Metal/Plastic |
| Color | Black/Silver |
| Size | Standard/Mini |
| Contact Plating | Gold/Tin |
| Insulation Resistance | 1000MΩ |
The 7 Pin Connectors, also known as 7-pin adapters, 7-way connectors, or 7-pole connectors, are versatile components suitable for a variety of applications across different industries. With options available in both Male and Female connector types, these connectors offer a reliable solution for connecting multiple circuits or components.
Thanks to their wide operating temperature range of -40°C to 85°C, these connectors are suitable for use in diverse environmental conditions, making them ideal for applications that require a robust and durable connection. The connectors' Contact Resistance of 20mΩ ensures a low resistance connection, promoting efficient electrical conductivity and minimizing signal loss.
Available in a sleek Black or Silver color, these connectors can be chosen to match the aesthetic of the equipment or application they are used in. The option of Mounting Type, whether Through Hole or Surface Mount, provides flexibility in installation, catering to different design requirements.
The 7 Pin Connectors find application in various scenarios across industries such as automotive, telecommunications, consumer electronics, and industrial machinery. In automotive settings, these connectors are commonly used for connecting lighting systems, sensors, and control modules due to their reliable connection and temperature resistance.
In telecommunications, these connectors play a crucial role in connecting network equipment and ensuring seamless data transmission. Their robust build and low contact resistance make them a preferred choice for maintaining signal integrity.
For consumer electronics, the 7 Pin Connectors are utilized in devices such as audio equipment, power supplies, and data transfer cables, facilitating secure and stable connections. Their color options and mounting types make them adaptable to various electronic designs.
In industrial machinery applications, these connectors are employed in control panels, motor connections, and sensor interfaces, providing a dependable link between different components. The versatility of these connectors makes them a go-to choice for engineers and designers looking for a reliable interconnection solution.
Customize your 7-pin adapters with our Product Customization Services:
Size: Standard/Mini
Connector Type: Male/Female
Insulation Resistance: 1000MΩ
Operating Temperature: -40°C To 85°C
Current Rating: 5A/10A
Enhance your 7-way connectors with tailored options for your 7-socket plugs.
Product Name: 7 Pin Connectors
Description: The 7 Pin Connectors are designed for secure and reliable electrical connections.
Package Includes:
- 5 x 7 Pin Connectors
- User Manual
Shipping Information:
- Ships within 1-2 business days
- Standard shipping rates apply
- Tracking number will be provided
