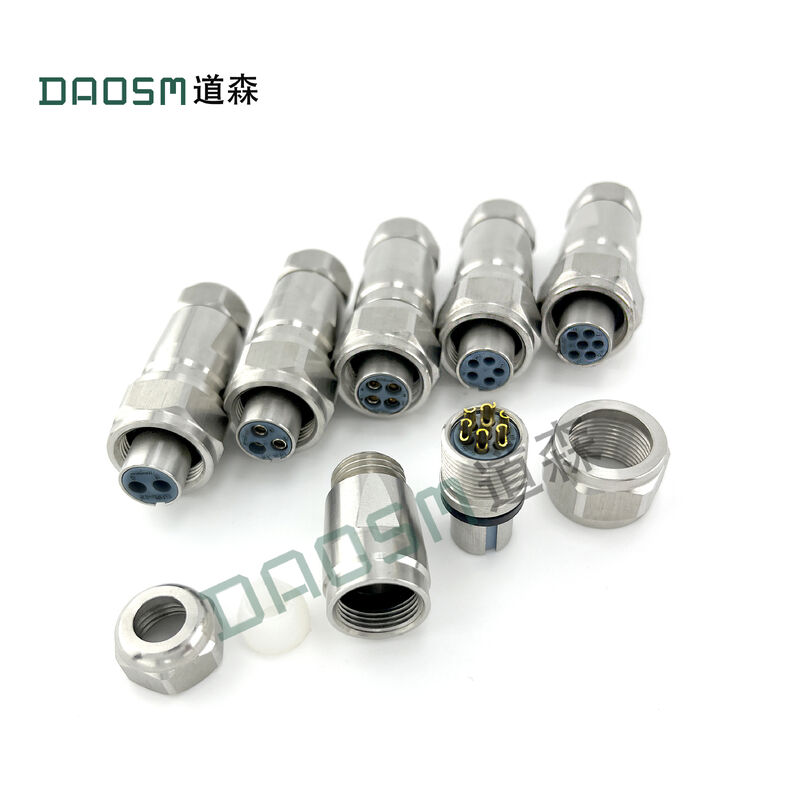

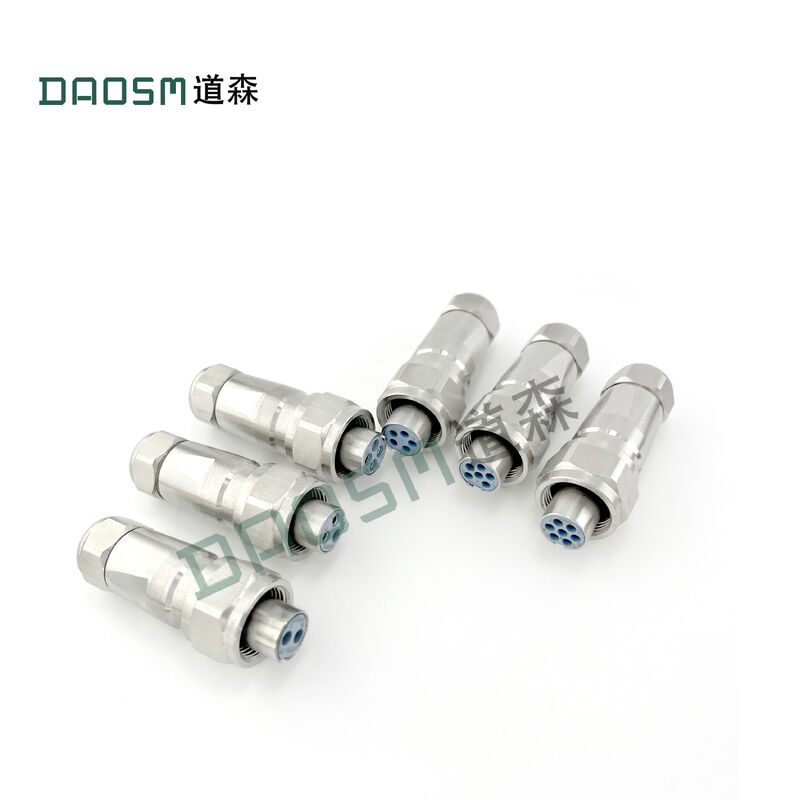

5A Current Rating 7 Pin Electrical Connector Rust Resistant For Standard Applications

Product Description:

The 7 Pin Connectors, also known as 7-socket plugs or 7-contact connectors, are essential components that provide a reliable and efficient way to connect various devices and systems. Designed to withstand a wide range of operating conditions, these connectors offer exceptional performance and durability.

Operating Temperature: The 7 Pin Connectors are built to endure extreme temperatures, with an operating temperature range from -40°C to 85°C. This wide temperature tolerance ensures that the connectors can be used in diverse environments without compromising their functionality.

Color: Available in classic Black and Silver options, these connectors blend seamlessly with different equipment and setups. The choice of colors adds a touch of versatility and aesthetics to the connectors, making them suitable for a variety of applications.

Durability: With a durability rating of 5000 cycles, these connectors are engineered to last. The robust construction and high-quality materials used in their manufacturing ensure that they can withstand frequent use and provide long-lasting reliability.

Material: The 7 Pin Connectors feature a combination of Metal and Plastic components. This blend of materials offers a balance of strength, conductivity, and flexibility, making the connectors suitable for a wide range of electrical and electronic connections.

Size: Available in both Standard and Mini sizes, these connectors cater to different space and application requirements. The Standard size provides ample connectivity options for larger devices, while the Mini size offers a compact solution for applications with limited space.

Whether you need to establish secure connections in industrial machinery, automotive systems, or electronic devices, the 7 Pin Connectors are a versatile and reliable choice. Their high-quality construction, wide operating temperature range, color options, durability, and material compatibility make them a go-to solution for various connection needs.

Features:

• Product Name: 7 Pin Connectors
• Insulation Resistance: 1000MΩ
• Contact Resistance: 20mΩ
• Operating Temperature: -40°C To 85°C
• Number Of Pins: 7
• Current Rating: 5A/10A

Technical Parameters:

Applications:

7 Pin Connectors are versatile electrical components that find application in a variety of scenarios due to their unique attributes. With a current rating of 5A/10A, these connectors are suitable for both low-power and medium-power applications. Their through-hole or surface mount mounting types make them adaptable to different circuit board configurations.

Whether you need to establish connections in industrial machinery, automotive systems, or electronic devices, the 7 Pin Connectors offer reliable performance. The male/female connector types provide flexibility in designing circuits and allow for easy integration into existing setups.

Thanks to their low contact resistance of 20mΩ and contact plating options of gold or tin, these connectors ensure excellent conductivity and signal transmission. This makes them ideal for applications where signal integrity is crucial, such as data transmission equipment and audio systems.

The 7 Pin Connectors are commonly used in scenarios requiring the connection of multiple signals or power sources. They are popular in the audiovisual industry for connecting speakers, microphones, and other audio equipment. Additionally, these connectors are essential in lighting fixtures, control panels, and automation systems.

Moreover, the durability and stability of the 7-wire connectors make them perfect for harsh environments like outdoor installations or industrial settings. Their secure connections and resistance to vibrations ensure reliable performance even in challenging conditions.

Whether you need to build custom cables, design PCBs, or create 7-pin adapters for specific applications, these connectors offer the versatility and reliability required for various projects. Their compatibility with different mounting types and connector configurations make them a go-to choice for engineers and hobbyists alike.

Customization:

Customize your 7-pin adapters with our Product Customization Services. Choose from various options to tailor your 7-terminal connectors to meet your specific needs:

Voltage Rating: 12V/24V

Mounting Type: Through Hole/Surface Mount

Color: Black/Silver

Size: Standard/Mini

Termination Style: Solder/Crimp

Personalize your 7-socket plugs to suit your requirements with our customization options.

Packing and Shipping:

Product Name: 7 Pin Connectors

Product Description: High-quality 7 pin connectors for various electronic devices.

Features:

• Durable and reliable
• Easy to install
• Compatible with a wide range of devices

Packaging: Each 7 pin connector is carefully packed in a protective plastic case to prevent damage during shipping.

Shipping: We offer fast and secure shipping options to ensure your 7 pin connectors arrive safely and on time.
