Place of Origin:
CHINA
Brand Name:
daosm
Certification:
ISO9001 CE ROHS FCC IP67

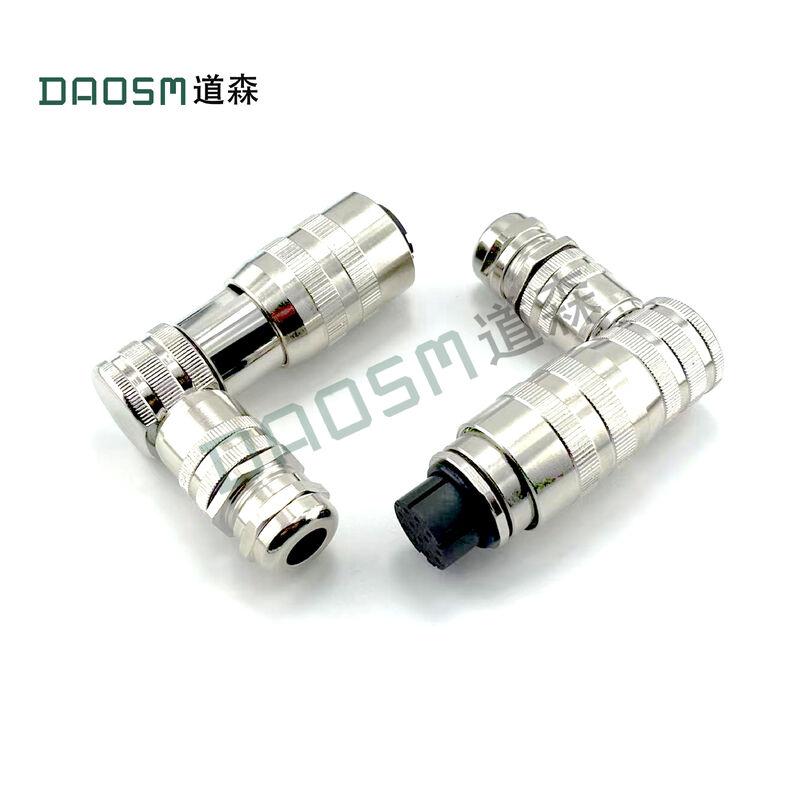

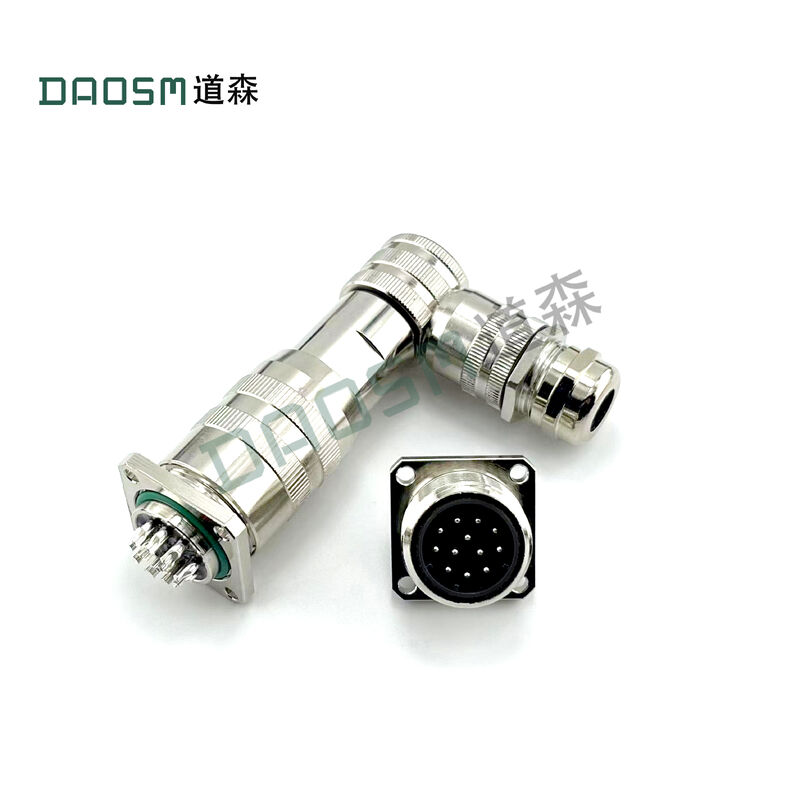

The 7 Pin Connectors product is a versatile and reliable solution for various electrical connectivity needs. With a design that ensures secure and efficient connections, these connectors are ideal for a wide range of applications. Whether you are working on automotive, industrial, or commercial projects, the 7 Pin Connectors provide a dependable way to establish connections between different components.
Featuring a rugged construction, these connectors are built to withstand challenging environments. The operating temperature range of -40°C to 85°C ensures that the connectors can perform effectively in extreme conditions, making them suitable for both indoor and outdoor use. This wide temperature tolerance makes the 7 Pin Connectors a dependable choice for applications that require resilience and durability.
When it comes to electrical performance, the 7 Pin Connectors excel in providing reliable connectivity. With an insulation resistance of 1000MΩ, these connectors offer excellent protection against electrical leakage and short circuits. This high level of insulation resistance ensures the safety and integrity of the electrical connections, giving you peace of mind when using the connectors in your projects.
The 7 Pin Connectors feature a total of 7 pins, also known as 7-contact connectors or 7-pole connectors. This configuration allows for the transmission of multiple signals or power between connected devices, making the connectors suitable for applications that require complex electrical connections. Whether you need to transfer data, power, or signals, the 7 Pin Connectors provide a convenient and efficient solution for establishing reliable connections.
With a voltage rating of 12V/24V, the 7 Pin Connectors are compatible with a wide range of electrical systems and devices. Whether you are working with low-voltage or moderate-voltage applications, these connectors can handle the power requirements effectively. The dual voltage rating gives you the flexibility to use the connectors in various projects without worrying about compatibility issues.
Available in both male and female connector types, the 7 Pin Connectors offer versatility in connectivity options. Whether you need to establish connections between different genders of connectors or create custom cable assemblies, the availability of male and female connectors gives you the flexibility to design and implement your electrical systems according to your specific requirements.
In summary, the 7 Pin Connectors are a reliable, versatile, and high-performance solution for your electrical connectivity needs. With a robust construction, wide operating temperature range, high insulation resistance, and multiple pins for complex connections, these connectors are suitable for a variety of applications across different industries. Whether you are a professional electrician, an automotive enthusiast, or a DIY hobbyist, the 7 Pin Connectors provide a dependable way to establish secure and efficient electrical connections in your projects.
| Technical Parameter | Specification |
|---|---|
| Termination Style | Solder/Crimp |
| Number Of Pins | 7 |
| Contact Plating | Gold/Tin |
| Current Rating | 5A/10A |
| Mounting Type | Through Hole/Surface Mount |
| Size | Standard/Mini |
| Operating Temperature | -40°C To 85°C |
| Durability | 5000 Cycles |
| Voltage Rating | 12V/24V |
| Insulation Resistance | 1000MΩ |
When it comes to the versatile 7-pin connectors, there are numerous product application occasions and scenarios where they play a crucial role. These connectors, available in various configurations including 7-head connectors, 7-pin sockets, and 7-pole connectors, are well-suited for a wide range of uses due to their unique attributes.
With options for contact plating in either gold or tin, these connectors offer excellent conductivity and corrosion resistance, making them ideal for use in both indoor and outdoor environments. The choice of material, whether metal or plastic, provides flexibility in selecting the right connector based on the specific application requirements.
Whether you need a standard size connector for regular applications or a mini size for space-constrained scenarios, the 7-pin connectors offer a solution for every need. The current rating of 5A or 10A ensures that these connectors can handle varying levels of electrical currents, making them suitable for a wide range of devices and equipment.
One of the standout features of these connectors is their durability, with the ability to withstand up to 5000 cycles of connecting and disconnecting. This makes them a reliable choice for applications that require frequent plugging and unplugging, ensuring long-lasting performance.
From industrial machinery and automotive systems to consumer electronics and medical devices, the 7-pin connectors find applications in diverse industries. They are commonly used in data transmission, power supply, audio equipment, and more, showcasing their versatility and adaptability to different scenarios.
Whether you are designing a new product, upgrading existing equipment, or simply in need of a reliable connector solution, the 7-pin connectors with their various attributes offer a dependable and efficient solution for a wide range of product application occasions and scenarios.
Enhance your 7-contact connectors with our Product Customization Services:
Current Rating: 5A/10A
Connector Type: Male/Female
Contact Resistance: 20mΩ
Material: Metal/Plastic
Insulation Resistance: 1000MΩ
Product Name: 7 Pin Connectors
Description: High-quality 7 pin connectors for various electrical applications.
Features:
Package Includes:
Shipping Information:
