Place of Origin:
CHINA
Brand Name:
daosm
Certification:
ISO9001 CE ROHS FCC IP67
Introducing our versatile 7 Pin Connectors, the perfect solution for your electrical connection needs. These 7-pin adapters, also known as 7-head connectors or 7-way connectors, are designed to provide a reliable and secure connection in various applications.
With a voltage rating of 12V/24V, these connectors are suitable for both low and high voltage systems, offering flexibility and compatibility with a wide range of devices and equipment. Whether you need to connect lights, sensors, or other electronic components, these connectors can handle the task efficiently.

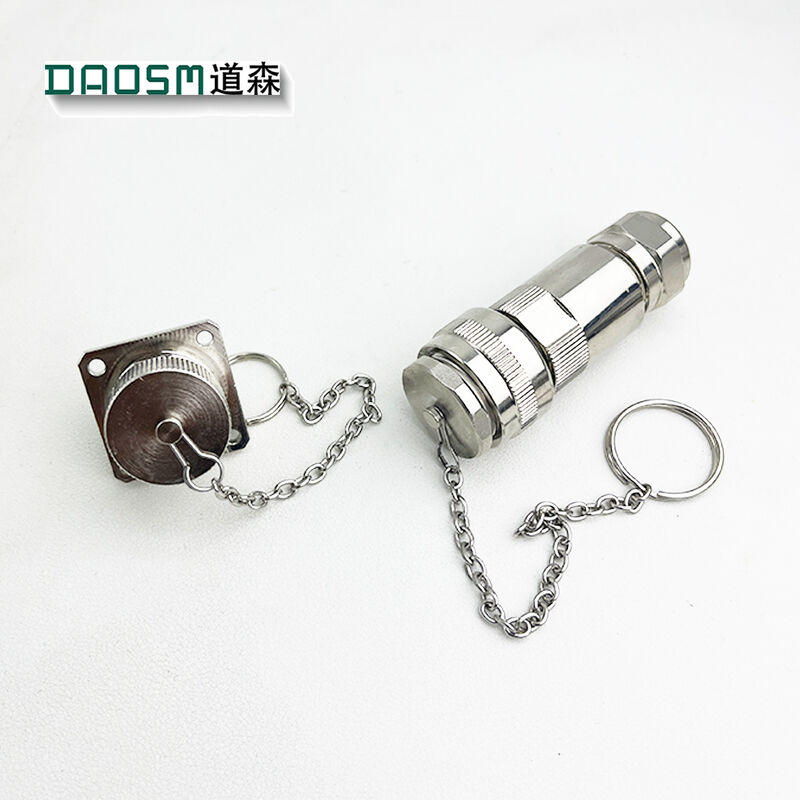

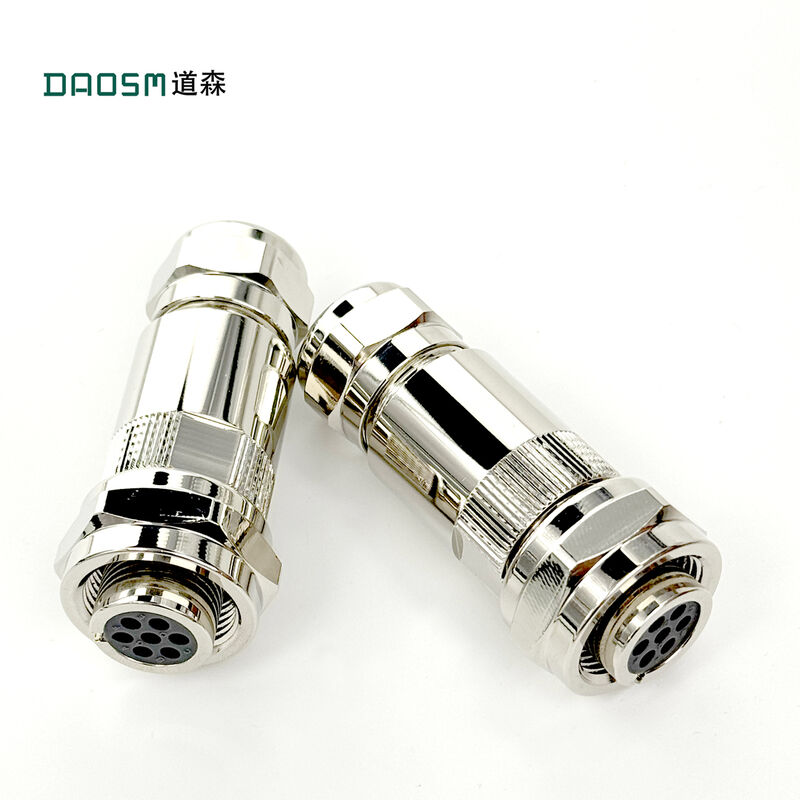

The 7 Pin Connectors come in both male and female connector types, allowing you to easily establish connections between different devices or create extension cables with ease. The male connectors feature pins that insert into the corresponding female connectors snugly, ensuring a secure and stable connection every time.
When it comes to insulation resistance, these connectors offer an impressive 1000MΩ rating, providing excellent protection against electrical leakage and ensuring the safety of your electrical circuits. This high level of insulation resistance makes these connectors ideal for use in various environments, including industrial settings, automotive applications, and more.
For optimal conductivity and durability, the contact plating of these connectors is available in two options: gold and tin. Gold plating offers superior corrosion resistance and ensures reliable electrical performance over time, making it perfect for applications where a stable connection is crucial. On the other hand, tin plating provides a cost-effective solution while maintaining good conductivity and durability.
Available in both standard and mini sizes, these connectors cater to different space requirements and applications. The standard size connectors are ideal for regular installations where space is not a constraint, while the mini connectors are perfect for compact devices or situations where size is a critical factor.
Whether you are setting up a new electrical system, repairing existing connections, or creating custom wiring solutions, the 7 Pin Connectors offer the versatility and reliability you need. Their robust construction, high-quality materials, and precise engineering ensure that you get a consistent and dependable performance in every application.
Trust our 7 Pin Connectors to deliver seamless electrical connections that meet your requirements and exceed your expectations. With their exceptional voltage rating, male and female connector options, high insulation resistance, choice of contact plating, and availability in standard and mini sizes, these connectors are the perfect choice for a wide range of electrical projects.
| Contact Plating | Gold/Tin |
| Mounting Type | Through Hole/Surface Mount |
| Material | Metal/Plastic |
| Size | Standard/Mini |
| Durability | 5000 Cycles |
| Insulation Resistance | 1000MΩ |
| Current Rating | 5A/10A |
| Operating Temperature | -40°C To 85°C |
| Termination Style | Solder/Crimp |
| Contact Resistance | 20mΩ |
The 7-pin connectors, also known as 7-wire connectors, 7-contact connectors, or 7-way connectors, are versatile components that find numerous application occasions and scenarios due to their specific attributes:
Insulation Resistance: With an insulation resistance of 1000MΩ, these connectors are ideal for applications where maintaining electrical insulation is crucial. They ensure reliable connections while preventing any leakage or short circuits.
Termination Style: The connectors support both soldering and crimping termination styles, offering flexibility in installation and maintenance. Whether the requirement is for a more permanent connection through soldering or a quicker, more adaptable solution with crimping, these connectors cater to diverse needs.
Operating Temperature: Designed to withstand extreme temperatures, ranging from -40°C to 85°C, these connectors are suitable for use in harsh environmental conditions. They provide stable performance and durability even in challenging temperature variations.
Material: Constructed with a combination of metal and plastic materials, these connectors offer a balance of strength and lightweight properties. The metal components ensure robustness, while the plastic parts contribute to corrosion resistance and ease of handling.
Color: Available in black and silver options, the connectors can be chosen based on aesthetic preferences or for color-coding purposes in complex wiring systems. The distinct colors provide visual clarity and organization in multi-connector setups.
Given these attributes, the 7-pin connectors are commonly used in various industries and scenarios, including automotive wiring harnesses, trailer connections, industrial machinery, RV electrical systems, and more. Their reliability, versatility, and compatibility with different termination methods make them a go-to choice for professionals seeking secure and efficient electrical connections.
Customize your 7-wire connectors with our Product Customization Services:
Termination Style: Solder/Crimp
Mounting Type: Through Hole/Surface Mount
Contact Plating: Gold/Tin
Connector Type: Male/Female
Current Rating: 5A/10A
Product Packaging for 7 Pin Connectors:
Each set of 7 pin connectors is carefully packaged in a sturdy cardboard box to ensure safe delivery.
Shipping Information:
We offer fast and reliable shipping services for our 7 pin connectors product. Orders are typically processed and shipped within 1-2 business days.
