Place of Origin:
CHINA
Brand Name:
daosm
Certification:
ISO9001 CE ROHS FCC IP67

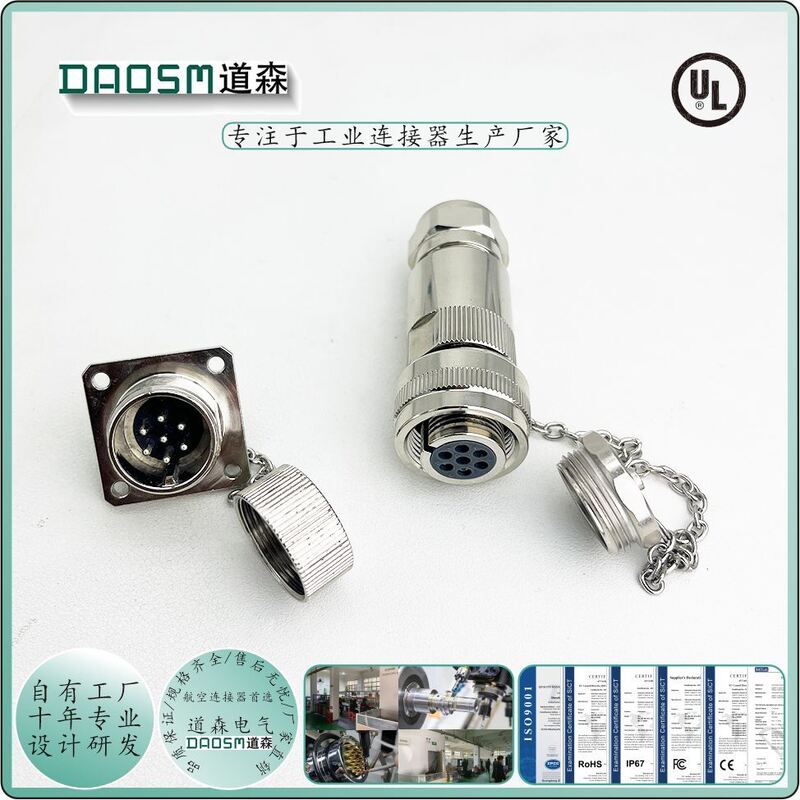

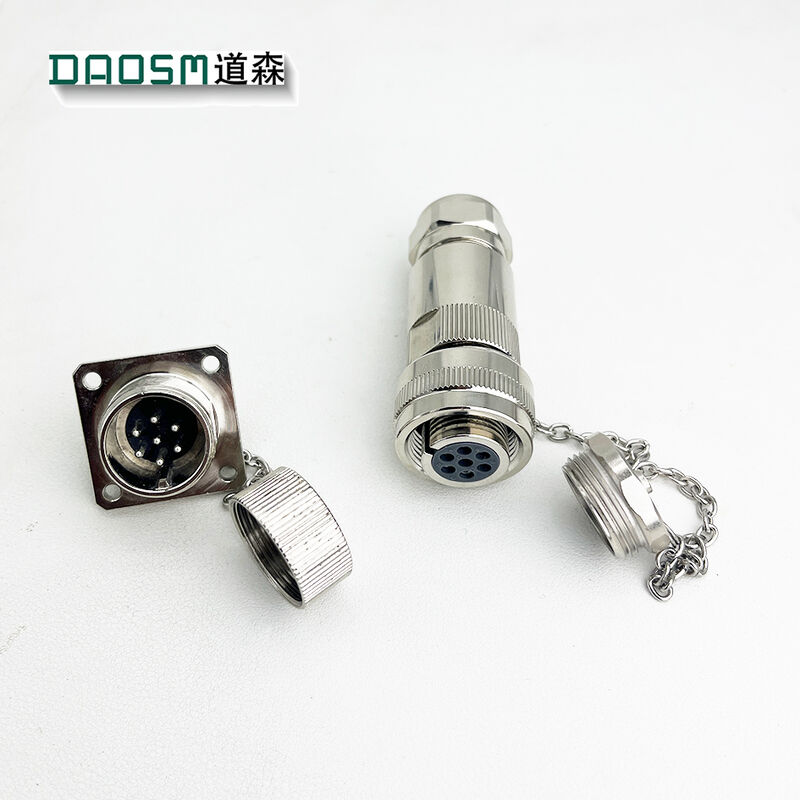

The 7-pin connectors, also known as 7-pole connectors or 7-pin adapters, are versatile components designed for electrical connections in various applications. These connectors come with a voltage rating of 12V/24V, making them suitable for a wide range of systems and equipment requiring reliable power supply.
With an insulation resistance of 1000MΩ, these 7-pin connectors ensure secure and stable connections, minimizing the risk of electrical malfunctions or short circuits. Whether you need to connect multiple devices or establish a secure power link, these connectors provide the insulation needed to maintain consistent performance.
Available in both standard and mini sizes, these connectors offer flexibility in installation and compatibility with different equipment configurations. The standard size is ideal for applications where space is not a constraint, while the mini size is perfect for compact setups or where size reduction is crucial.
Constructed from high-quality materials such as metal and plastic, these connectors are durable and reliable for long-term use. The metal connectors offer robustness and strength, suitable for demanding environments or heavy-duty applications. On the other hand, the plastic connectors provide lightweight and cost-effective solutions for standard applications.
Depending on your installation requirements, these 7-pin connectors are available in through-hole and surface mount configurations. The through-hole mounting type ensures a secure and stable connection by soldering the connectors onto a printed circuit board, making them suitable for applications where reliability is paramount. In contrast, the surface mount type offers easy installation and rework capabilities, ideal for applications where frequent maintenance or component replacement is expected.
In conclusion, the 7-pin connectors are reliable, versatile, and efficient components for establishing electrical connections in a variety of systems and devices. With their voltage rating, insulation resistance, size options, material choices, and mounting types, these connectors offer a comprehensive solution for your connectivity needs. Whether you are working on electronics projects, automotive applications, or industrial equipment, these connectors provide the performance and reliability required for seamless operation.
| Operating Temperature | -40°C To 85°C |
| Current Rating | 5A/10A |
| Contact Resistance | 20mΩ |
| Size | Standard/Mini |
| Number Of Pins | 7 |
| Material | Metal/Plastic |
| Termination Style | Solder/Crimp |
| Connector Type | Male/Female |
| Insulation Resistance | 1000MΩ |
| Color | Black/Silver |
When it comes to choosing the right connectors for your electronic projects, the 7-pin connectors are a versatile option that can be used in various applications and scenarios.
With a contact resistance of 20mΩ, these 7-pole connectors ensure reliable and stable connections, making them ideal for high-performance electronics where signal integrity is crucial.
The termination style of these 7-contact connectors allows for flexibility in installation - whether you prefer soldering or crimping, these connectors can accommodate your needs.
Thanks to the contact plating options of gold or tin, these 7-pin sockets offer durability and corrosion resistance, ensuring a long-lasting and secure connection in different environments.
Whether you need male or female connectors, the connector type options of these 7-pole connectors cater to various requirements in your projects, providing compatibility and ease of use.
Moreover, the mounting type options of through hole or surface mount make these connectors suitable for a wide range of electronic devices and PCB designs, offering versatility in installation and integration.
From industrial machinery to consumer electronics, automotive applications to medical devices, these 7-contact connectors find their place in diverse industries where reliable and efficient connections are essential.
Whether you are designing a new electronic product, upgrading existing equipment, or performing repairs, the 7-pin connectors with their robust attributes are a reliable choice for ensuring seamless connectivity and performance in your projects.
Product Customization Services for 7-contact connectors, 7-pole connectors, 7-pin adapters:
Mounting Type: Through Hole/Surface Mount
Size: Standard/Mini
Insulation Resistance: 1000MΩ
Termination Style: Solder/Crimp
Color: Black/Silver
Product Name: 7 Pin Connectors
Description: High-quality 7 pin connectors for secure and reliable electrical connections.
Package Includes: 10 pieces of 7 pin connectors
Shipping Information: This product will be carefully packaged and shipped within 1-2 business days. Shipping times may vary depending on location.
